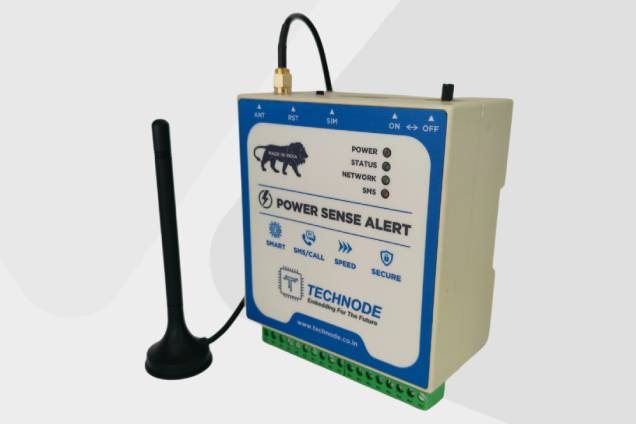

Power Sense Alert
- GSM Based Power Failure SMS Alert Modem
Power sense alert device notify user about any changes in power conditions Via SMS & CALL. Device continuously monitors the three-phase and single-phase inputs and based on mode settings, alerts the user about changes in power conditions. Device gives instant SMS & call alert to stored mobile numbers along with alarm output. Device can be attached to any power distribution system to monitor the power conditions. Device has inbuilt battery backup which provides 24x7 continuous monitoring for any power distribution system. Optionally, device keeps the data record of events for future audit purposes. Device keeps your critical load safe by notifying user about change in power conditions so that user can take appropriate actions to stop further loss.
Features
- Support Both 3 Phase & Single-Phase Inputs
- Instant SMS & Call Alerts
- 110V & 440V Both Distribution Supported
- Storage for 10 Users, 10 Mobile Numbers
- Support Latest 4G & 5G SIM
- Custom SMS Text Format
- 24 Hours Inbuilt Battery Backup
- Alarm / Siren Output for local notification
- Event Based Data Recording & Email Support
- Inbuilt Real Time Clock Support
- Relay Output to connect external load
- Configurable Scan Time to avoid False Triggering
Specifications
| Sr. No. | Parameter | Specification |
|---|---|---|
| 1 | Input Supply | 12V 2A DC ADAPTOR (Included) |
| 2 | Battery (Inbuilt) | 3.7V 1200 mAH |
| 3 | GSM | 4G (B1,B3,B5,B8, B34, B38, B39, B40, B41) 2G (900, 1800) |
| 4 | Antenna | 3 Meter Cable, Long range Magnetic antenna (Included) |
| 5 | Phase Input type | 1 Phase, 3 Phase (440V Max) |
| 6 | SIM Type | 2G/ 4G Mini Size (Original SIM size) |

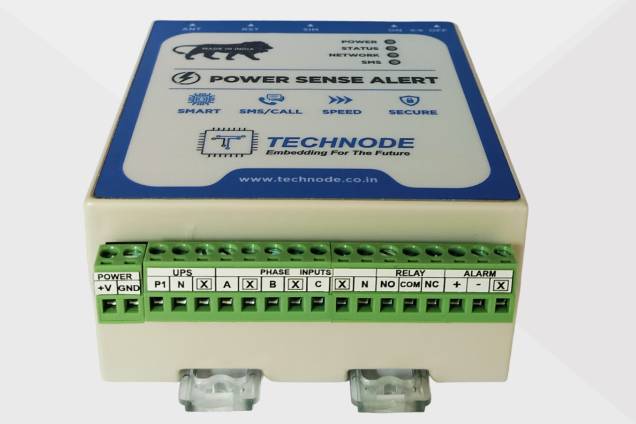

| 7 | Terminal | Removable Screw terminal |
| 8 | Alarm / Siren | 5V Siren / Alarm (Technode Make preferred) |
Applications
- ISP & SERVER ROOM MONITORING
- COLD STORAGE & CHILLER PLANTS
- AQUACULTURE & POULTRY FARMING
- MEDICAL ROOMS, HOSPITALS & LABORATORIES
- MINNING & CRUSHER PLANTS
- INDUSTRIAL MACHINE & EQUIPMENTS
